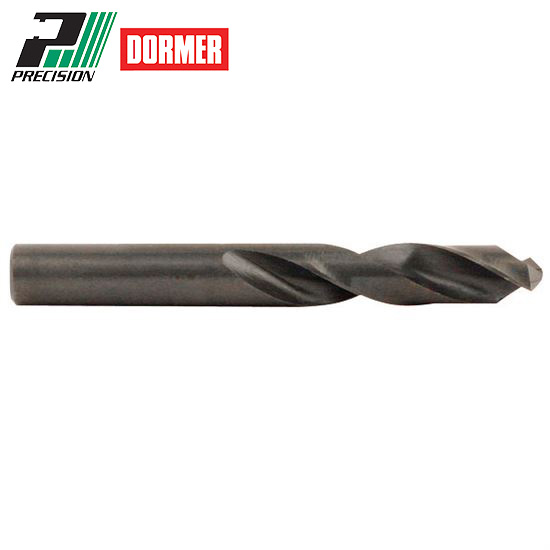

PRECISION DORMER 短刃机用直柄麻花钻

每包数量：
1/16"至19/64"：12
5/16"至1/2"：6
#1至#60：12
A至L：12
M至Z：6

PRECISION DORMER 短刃机用直柄麻花钻
右旋·高速钢

应用：
·用于要求短刃钻的螺丝机床加工
·短钻提供在加工钻削大范围材料及合金上增加刚性
·最适宜钻削钢，铸钢，铸铁或其他合金含铁材料，
也可以用于大范围不含铁及非合金性的材料上
·可以做为手用钻头使用或用于便携式及固定机器上
·用于达到最高的性能和最长的刀具寿命，要求使用适当的切削液或冷却液

特点：
·右旋
·标准的刃设计
·标准螺旋槽
·直柄对应钻头直径成比例
·短刃长与钻头直径成比例

技术参数：
·高速钢材质
·圆柱形棒料磨制
·118°或135°钻尖角和标准钻芯厚度
·发黑蒸汽处理

货号	型号	尺寸	直径	刃长	全长	刃数	重量	价格(1件起订)			购买
								1	1	1
01-310-126		Z		7/8"	3-3/8"	2	0.054 kg	139.49	139.49	139.49
01-310-125		Y		7/8"	3-5/16"	2	0.054 kg	139.49	139.49	139.49
01-310-124		X		15/16"	3-5/16"	2	0.045 kg	117.63	117.63	117.63
01-310-123		W		15/16"	3-1/4"	2	0.045 kg	103.34	103.34	103.34
01-310-122		V		15/16"	3-1/4"	2	0.045 kg	99.47	99.47	99.47
01-310-121		U		1"	3-1/8"	2	0.036 kg	90.71	90.71	90.71
01-310-120		T		1"	3-1/16"	2	0.036 kg	90.71	90.71	90.71
01-310-119		S		1"	3-1/16"	2	0.027 kg	76.59	76.59	76.59
01-310-118		R		1"	3"	2	0.027 kg	68.85	68.85	68.85
01-310-117		Q		1"	3"	2	0.027 kg	68.08	68.08	68.08
01-310-116		P		1-1/16"	2-15/16"	2	0.027 kg	68.08	68.08	68.08
01-310-115		O		1-1/16"	2-15/16"	2	0.018 kg	58.72	58.72	58.72
01-310-114		N		1-1/16"	2-13/16"	2	0.018 kg	58.25	58.25	58.25
01-310-113		M		1-1/16"	2-3/4"	2	0.018 kg	58.25	58.25	58.25
01-310-112		L		1-1/16"	2-3/4"	2	0.018 kg	54.08	54.08	54.08
01-310-111		K		1-1/8"	2-11/16"	2	0.018 kg	54.08	54.08	54.08
01-310-110		J		1-1/8"	2-11/16"	2	0.018 kg	50.50	50.50	50.50
01-310-109		I		1-1/8"	2-11/16"	2	0.009 kg	44.49	44.49	44.49
01-310-108		H		1-1/8"	2-11/16"	2	0.009 kg	44.49	44.49	44.49
01-310-107		G		1-1/8"	2-5/8"	2	0.009 kg	44.49	44.49	44.49
01-310-106		F		1-3/16"	2-5/8"	2	0.009 kg	41.81	41.81	41.81
01-310-105		E		1-3/16"	2-1/2"	2	0.009 kg	40.56	40.56	40.56
01-310-104		D		1-3/16"	2-1/2"	2	0.009 kg	38.41	38.41	38.41
01-310-103		C		1-3/16"	2-1/2"	2	0.009 kg	38.41	38.41	38.41
01-310-102		B		1-3/16"	2-1/2"	2	0.009 kg	38.41	38.41	38.41
01-310-101		A		1-3/16"	2-7/16"	2	0.009 kg	38.41	38.41	38.41
01-309-160		#60		1-1/4"	1-3/8"	2	0.005 kg	18.28	18.28	18.28
01-309-159		#59		1-1/4"	1-3/8"	2	0.005 kg	18.28	18.28	18.28
01-309-158		#58		1-1/4"	1-3/8"	2	0.005 kg	18.28	18.28	18.28
01-309-157		#57		1-1/4"	1-3/8"	2	0.005 kg	18.28	18.28	18.28
01-309-156		#56		1-5/16"	1-3/8"	2	0.005 kg	18.28	18.28	18.28
01-309-155		#55		1-5/16"	1-5/8"	2	0.005 kg	18.28	18.28	18.28
01-309-154		#54			1-5/8"	2	0.005 kg	18.28	18.28	18.28
01-309-153		#53			1-5/8"	2	0.005 kg	18.28	18.28	18.28
01-309-152		#52			1-11/16"	2	0.005 kg	18.28	18.28	18.28
01-309-151		#51			1-11/16"	2	0.005 kg	18.28	18.28	18.28
01-309-150		#50			1-11/16"	2	0.005 kg	18.28	18.28	18.28
01-309-149		#49			1-11/16"	2	0.005 kg	18.28	18.28	18.28
01-309-148		#48			1-11/16"	2	0.005 kg	18.28	18.28	18.28
01-309-147		#47			1-3/4"	2	0.005 kg	18.28	18.28	18.28
01-309-146		#46			1-3/4"	2	0.005 kg	18.28	18.28	18.28
01-309-145		#45			1-3/4"	2	0.005 kg	18.28	18.28	18.28
01-309-144		#44			1-3/4"	2	0.005 kg	18.28	18.28	18.28
01-309-143		#43			1-3/4"	2	0.005 kg	18.28	18.28	18.28
01-309-142		#42			1-3/4"	2	0.005 kg	18.28	18.28	18.28
01-309-141		#41			1-13/16"	2	0.005 kg	18.28	18.28	18.28
01-309-140		#40			1-13/16"	2	0.454 kg	19.77	19.77	19.77
01-309-139		#39			1-13/16"	2	0.005 kg	18.28	18.28	18.28
01-309-138		#38			1-13/16"	2	0.005 kg	18.28	18.28	18.28
01-309-137		#37			1-13/16"	2	0.005 kg	18.28	18.28	18.28
01-309-136		#36			1-13/16"	2	0.005 kg	18.22	18.22	18.22
01-309-135		#35			1-7/8"	2	0.005 kg	18.28	18.28	18.28
01-309-134		#34			1-7/8"	2	0.005 kg	18.28	18.28	18.28
01-309-133		#33			1-7/8"	2	0.005 kg	18.28	18.28	18.28
01-309-132		#32			1-7/8"	2	0.005 kg	18.28	18.28	18.28
01-309-131		#31			1-7/8"	2	0.005 kg	18.22	18.22	18.22
01-309-130		#30			1-15/16"	2	0.005 kg	18.22	18.22	18.22
01-309-129		#29			1-15/16"	2	0.005 kg	18.22	18.22	18.22
01-309-128		#28			1-15/16"	2	0.005 kg	18.28	18.28	18.28
01-309-127		#27			2-1/16"	2	0.005 kg	20.19	20.19	20.19
01-309-126		#26			2-1/16"	2	0.005 kg	20.19	20.19	20.19
01-309-125		#25			2-1/16"	2	0.005 kg	20.19	20.19	20.19
01-309-124		#24			2-1/16"	2	0.005 kg	20.42	20.42	20.42
01-309-123		#23			2-1/16"	2	0.005 kg	20.42	20.42	20.42
01-309-122		#22			2-1/8"	2	0.005 kg	20.42	20.42	20.42
01-309-121		#21			2-1/8"	2	0.005 kg	20.36	20.36	20.36
01-309-120		#20			2-1/8"	2	0.005 kg	21.08	21.08	21.08
01-309-119		#19			2-1/8"	2	0.005 kg	21.08	21.08	21.08
01-309-118		#18			2-1/8"	2	0.005 kg	21.08	21.08	21.08
01-309-117		#17			2-3/16"	2	0.005 kg	24.89	24.89	24.89
01-309-116		#16			2-3/16"	2	0.005 kg	24.89	24.89	24.89
01-309-115		#15			2-3/16"	2	0.005 kg	24.89	24.89	24.89
01-309-114		#14			2-3/16"	2	0.005 kg	24.89	24.89	24.89
01-309-113		#13			2-3/16"	2	0.005 kg	24.89	24.89	24.89
01-309-112		#12			2-1/4"	2	0.009 kg	26.44	26.44	26.44
01-309-111		#11			2-1/4"	2	0.009 kg	26.32	26.32	26.32
01-309-110		#10			2-1/4"	2	0.009 kg	26.32	26.32	26.32
01-309-109		#9			2-1/4"	2	0.009 kg	26.44	26.44	26.44
01-309-108		#8			2-1/4"	2	0.009 kg	26.44	26.44	26.44
01-309-107		#7			2-1/4"	2	0.009 kg	26.32	26.32	26.32
01-309-106		#6			2-3/8"	2	0.009 kg	31.03	31.03	31.03
01-309-105		#5			2-3/8"	2	0.009 kg	31.03	31.03	31.03
01-309-104		#4			2-3/8"	2	0.009 kg	31.03	31.03	31.03
01-309-103		#3			2-3/8"	2	0.009 kg	31.03	31.03	31.03
01-309-102		#2			2-7/16"	2	0.009 kg	32.87	32.87	32.87
01-309-101		#1			2-7/16"	2	0.009 kg	32.75	32.75	32.75
01-308-232		1/2"			3-3/4"	2	0.109 kg	142.20	142.20	142.20
01-308-231		31/64"			3-11/16"	2	0.086 kg	136.64	136.64	136.64
01-308-230		15/32"			3-5/8"	2	0.086 kg	133.90	133.90	133.90
01-308-229		29/64"			3-9/16"	2	0.064 kg	119.27	119.27	119.27
01-308-228		7/16"			3-7/16"	2	0.064 kg	102.78	102.78	102.78
01-308-227		27/64"			3-3/8"	2	0.064 kg	102.51	102.51	102.51
01-308-226		13/32"			3-5/16"	2	0.064 kg	94.81	94.81	94.81
01-308-225		25/64"			3-1/4"	2	0.041 kg	85.14	85.14	85.14
01-308-224		3/8"			3-1/8"	2	0.041 kg	76.07	76.07	76.07
01-308-223		23/64"			3-1/16"	2	0.045 kg	75.42	75.42	75.42
01-308-222		11/32"			3"	2	0.045 kg	67.50	67.50	67.50
01-308-221		21/64"			2-15/16"	2	0.023 kg	61.89	61.89	61.89
01-308-220		5/16"			2-13/16"	2	0.023 kg	49.31	49.31	49.31
01-308-219		19/64"			2-3/4"	2	0.023 kg	46.89	46.89	46.89
01-308-218		9/32"			2-11/16"	2	0.023 kg	43.04	43.04	43.04
01-308-217		17/64"			2-5/8"	2	0.023 kg	40.73	40.73	40.73
01-308-216		1/4"			2-1/2"	2	0.023 kg	36.33	36.33	36.33
01-308-215		15/64"			2-7/16"	2	0.023 kg	33.75	33.75	33.75
01-308-214		7/32"			2-3/8"	2	0.011 kg	29.32	29.32	29.32
01-308-213		13/64"			2-1/4"	2	0.136 kg	67.77	67.77	67.77
01-308-212		3/16"			2-3/16"	2	0.091 kg	50.95	50.95	50.95
01-308-211		11/64"			2-1/8"	2	0.091 kg	49.63	49.63	49.63
01-308-210		5/32"			2-1/16"	2	0.005 kg	19.08	19.08	19.08
01-308-209		9/64"			1-15/16"	2	0.005 kg	17.71	17.71	17.71
01-308-208		1/8"			1-7/8"	2	0.005 kg	16.72	16.72	16.72
01-308-207		7/64"			1-13/16"	2	0.005 kg	17.49	17.49	17.49
01-308-206		3/32"			1-3/4"	2	0.005 kg	17.10	17.10	17.10
01-308-205		5/64"			1-11/16"	2	0.005 kg	17.49	17.49	17.49
01-308-204		1/16"			1-5/8"	2	0.005 kg	17.32	17.32	17.32
